Tudor 5 Rosette

The Tudor 5 rosette is a is a 5-sided rosette based on the Tudor rose, the traditional floral heraldic emblem of England which takes its name and origins from the House of Tudor. (That emblem is one outer pattern, with an inner pattern rotated one half lobe.)

Aspect Value Comments
Pattern Tudor rose
Pattern Repeated 5 times
Target Diameter
for Rosette Design 		2”
  • A smaller diameter on the object results in surfaces which have sharper curves at the apexes of the curves.

  • A larger diameter on the object reverses this.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/8 lobe
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

Click on any of the images below to see a bigger version.

Paper Chuck Drawing

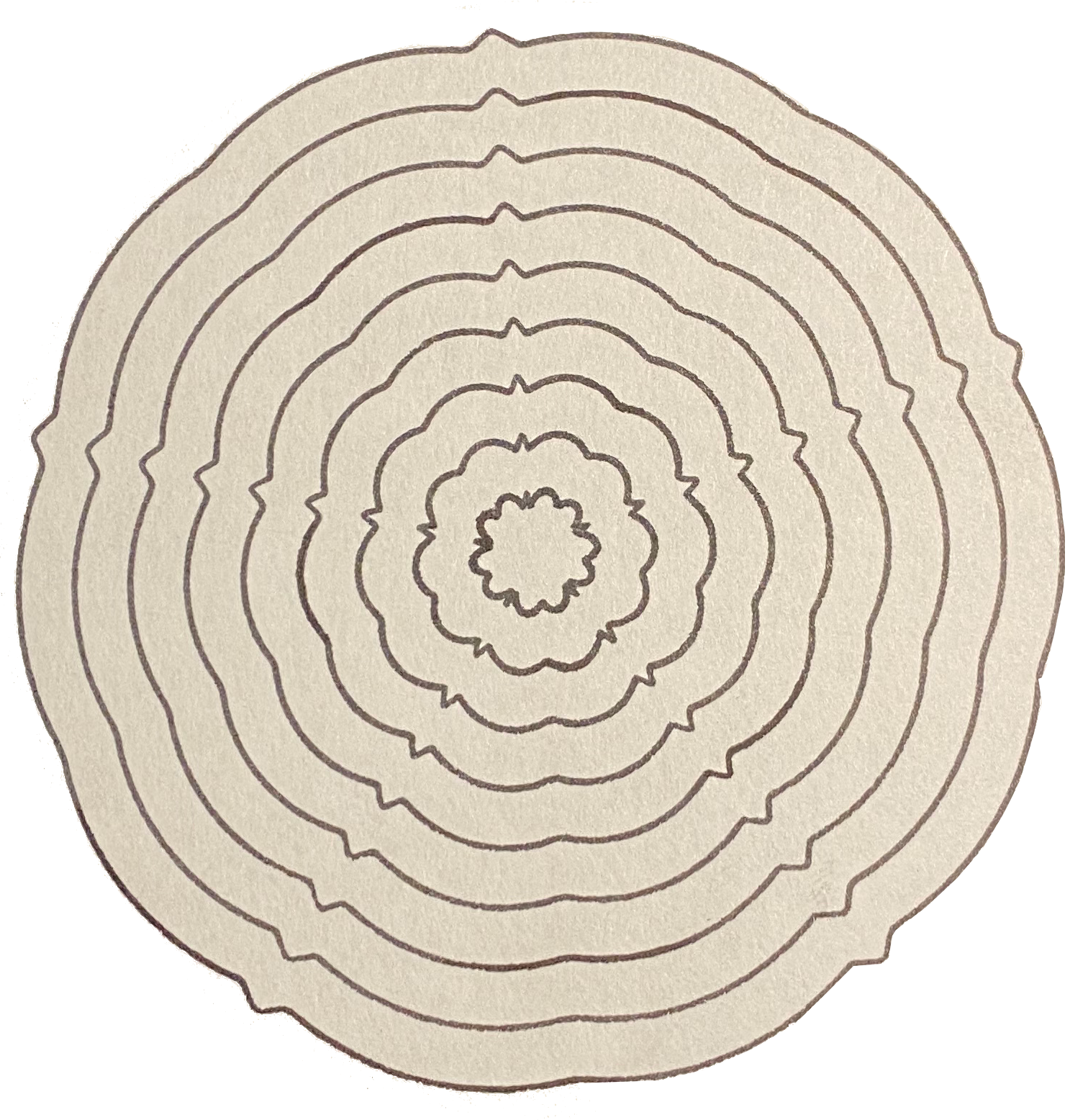

Drawn from the Near Side

Paper Chuck Drawing

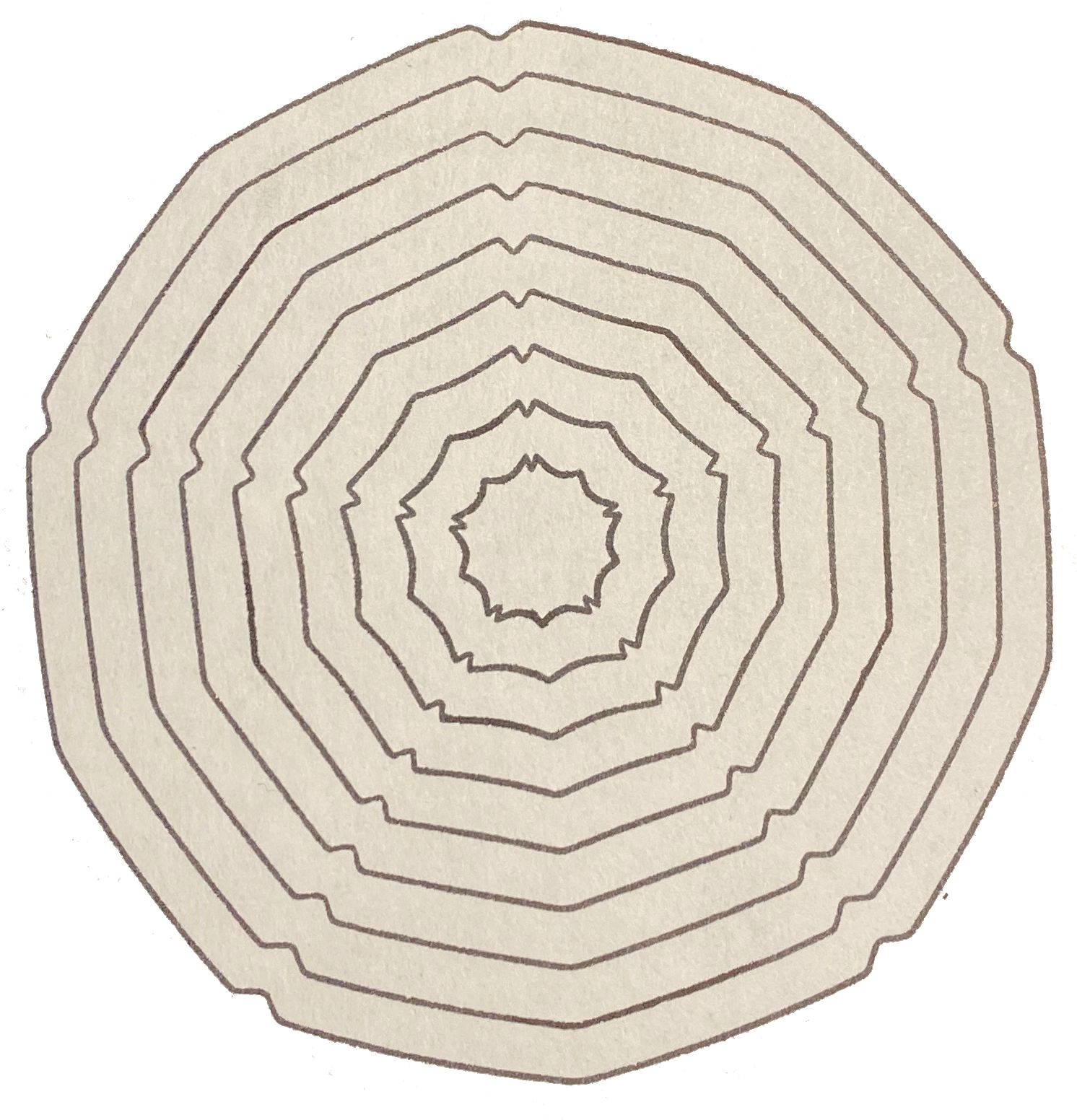

Drawn from the Far Side
