Holtzapffel F Series

Holtzapffel F-8 Rosette

The F-8 rosette is a heart which has been unfolded, and wrapped around a circle.

Aspect Value Comments
Pattern Unfolded heart
Pattern Repeated 8 times
Target Diameter
for Rosette Design 		2”
  • A smaller diameter on the object results in surfaces which have sharper curves at the apexes of the curves.

  • A larger diameter on the object reverses this.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/4 lobe
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

Click on any of the images below to see a bigger version.

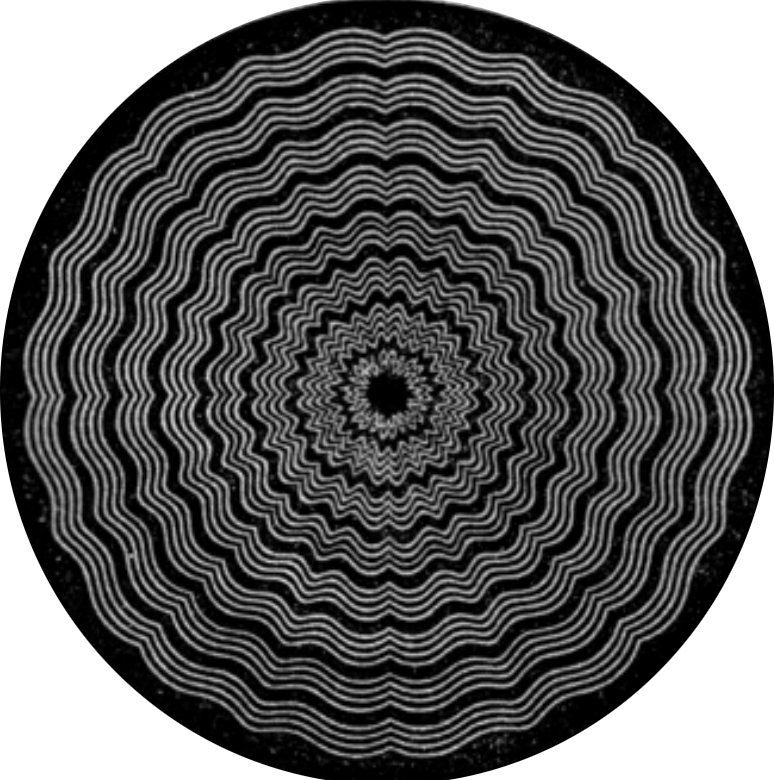

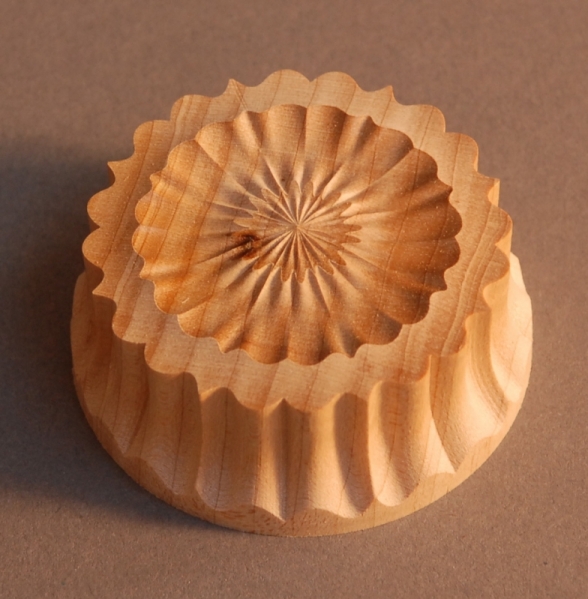

Image courtesy Jon Magill F-8 Paper Chuck image from Holtzapffel's Patterns of Rosettes

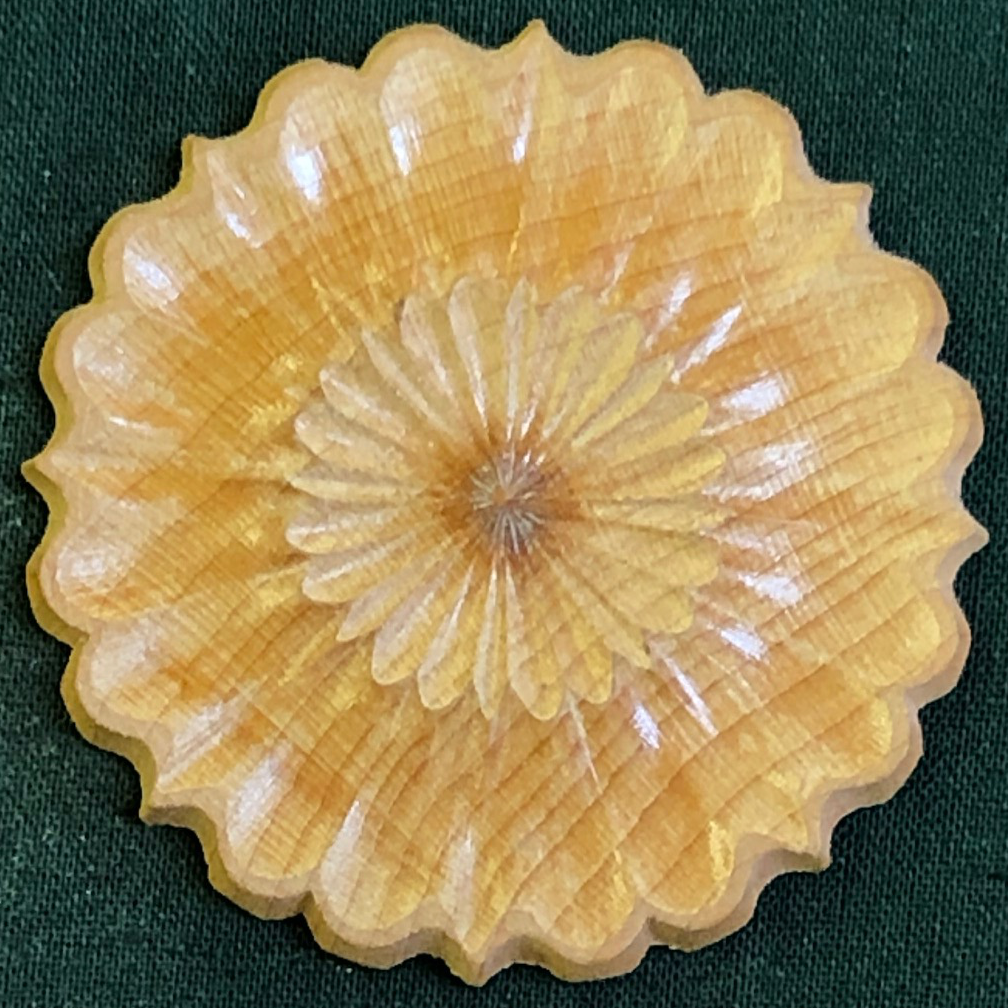

This picture shows the design as cut from the near side.

Image courtesy John Moe.

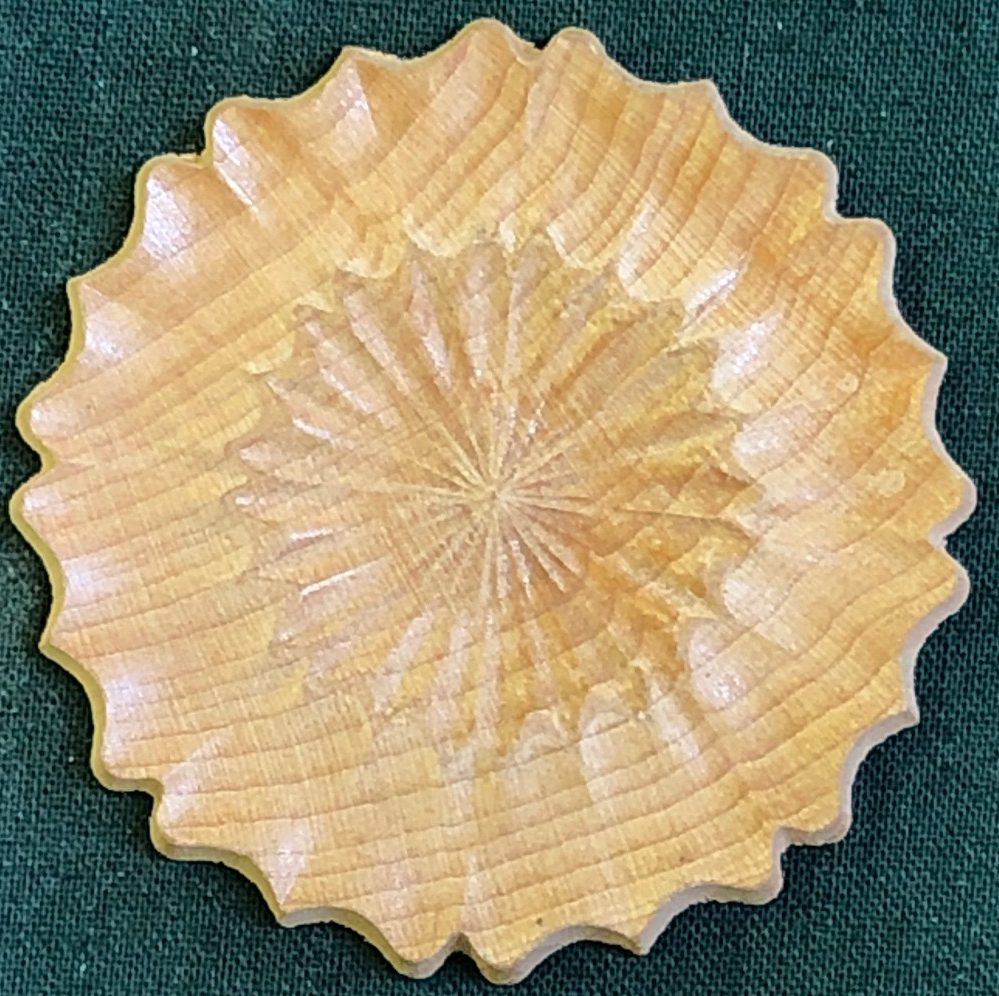

This picture shows the design as cut from the far side.

Image courtesy John Moe.
