Holtzapffel A-48 Rosette

The A-48 rosette is a series of sine waves wrapped around a circle.

Aspect Value Comments
Pattern Sine wave
Pattern Repeated 48 times
Target Diameter
for Rosette Design
2”
  • A smaller diameter on the object results in surfaces which have sharper curves at the apexes of the curves.

  • A larger diameter on the object reverses this.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/2 lobe
Works For End Cutting Near side cutting
Far side cutting, or using rear rubber column
Side Cutting Near side cutting
Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

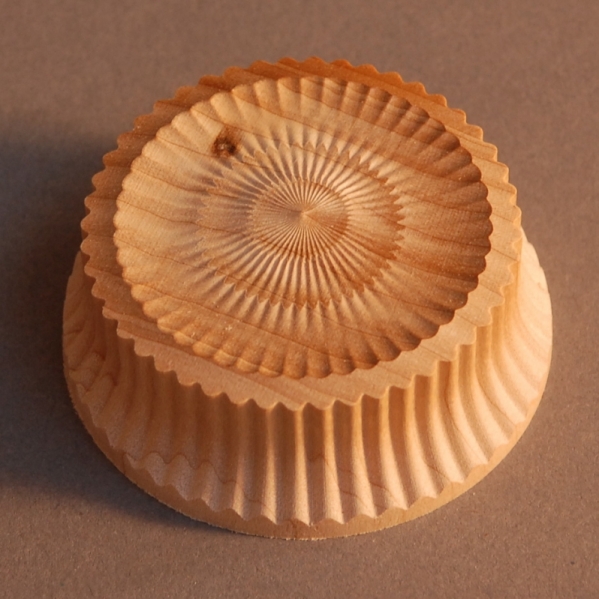

Click on any of the images below to see a bigger version.

Image courtesy Jon Magill

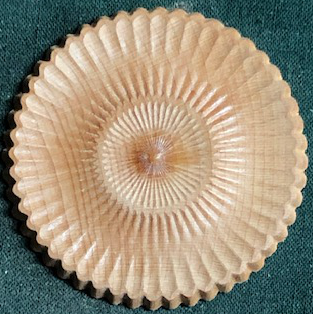

This picture shows the design as cut from the near side.

Image courtesy John Moe.

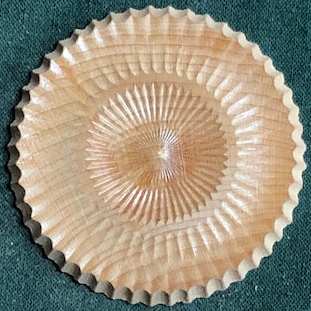

This picture shows the design as cut from the far side.

Image courtesy John Moe.
