Tudor 8 Rosette

The Tudor 8 rosette is an 8-sided rosette based on the Tudor rose, the traditional floral heraldic emblem of England which takes its name and origins from the House of Tudor.

Aspect Value Comments
Pattern Tudor rose
Pattern Repeated 8 times
Target Diameter
for Rosette Design 		2”
  • A smaller diameter on the object results in surfaces which have sharper curves at the apexes of the curves.

  • A larger diameter on the object reverses this.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/4 lobe
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

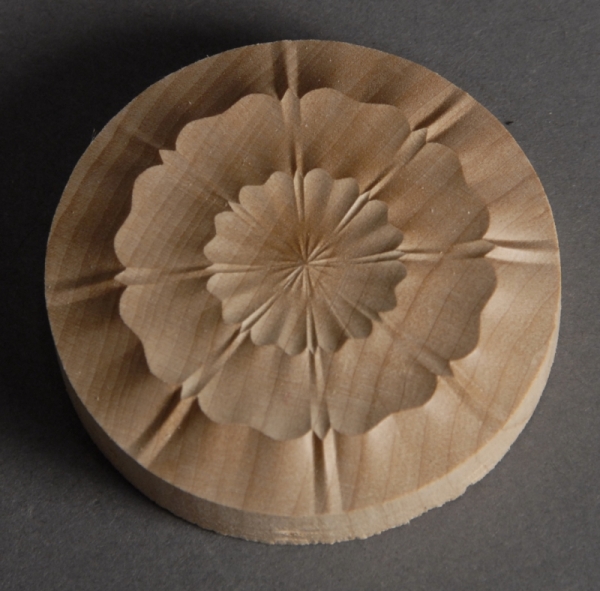

Click on any of the images below to see a bigger version.

  • The cuts in the top center show how the object has smaller and more pointed areas.
  • The cuts around the outside show how the shapes are reversing this.

Image courtesy Jon Magill

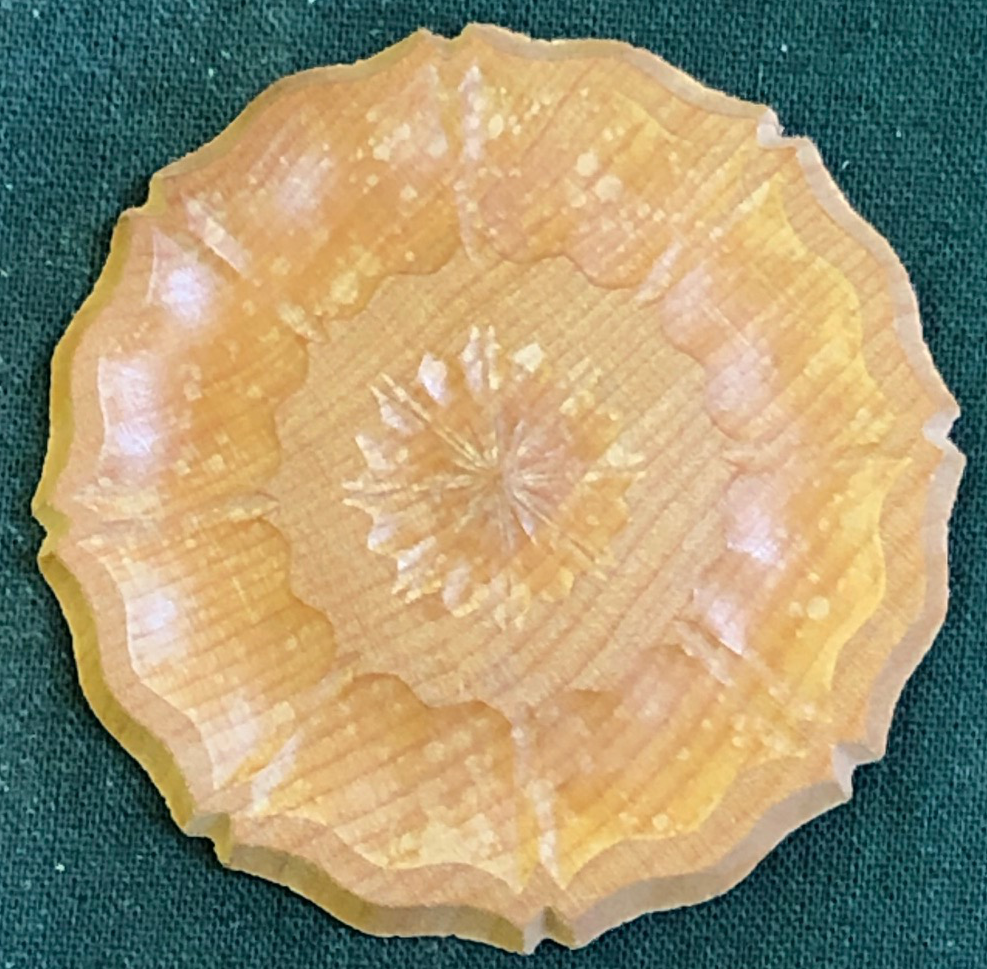

This picture shows the design as cut from the far side.

Image courtesy John Moe.

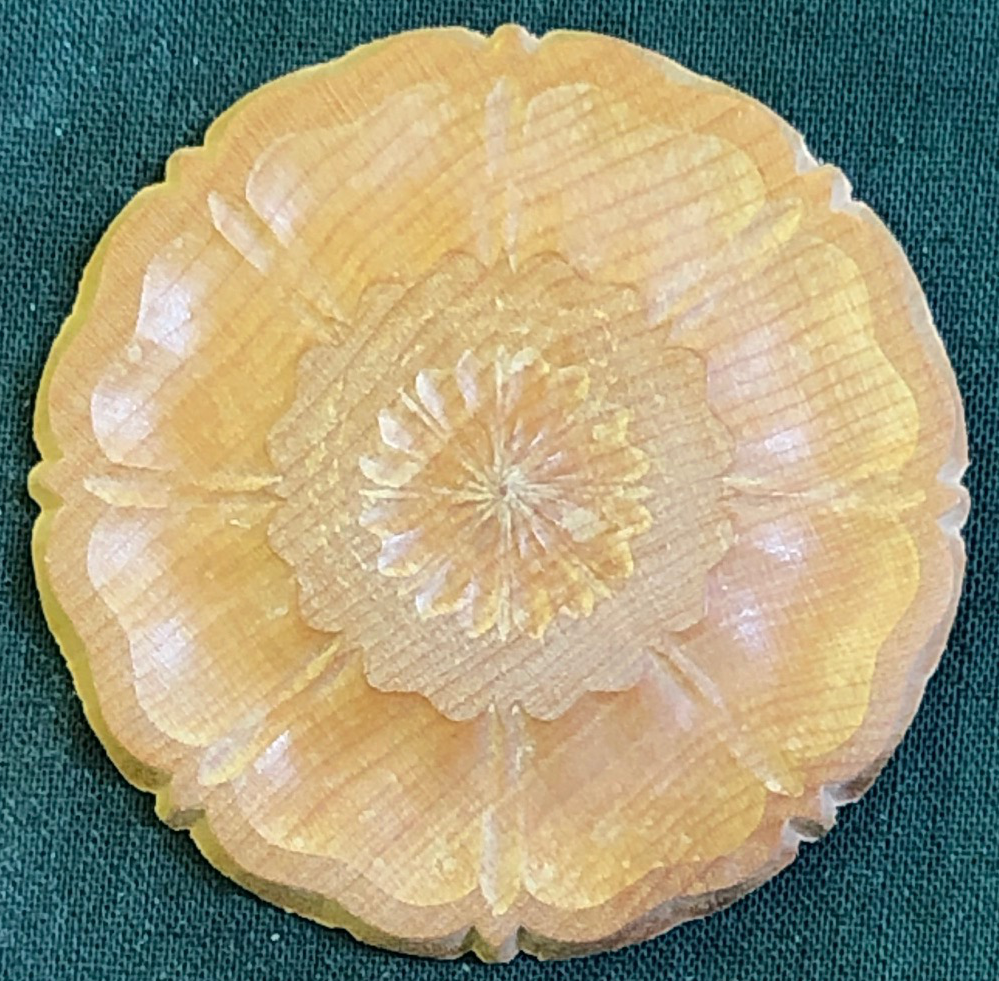

This picture shows the design as cut from the near side.

Image courtesy John Moe.

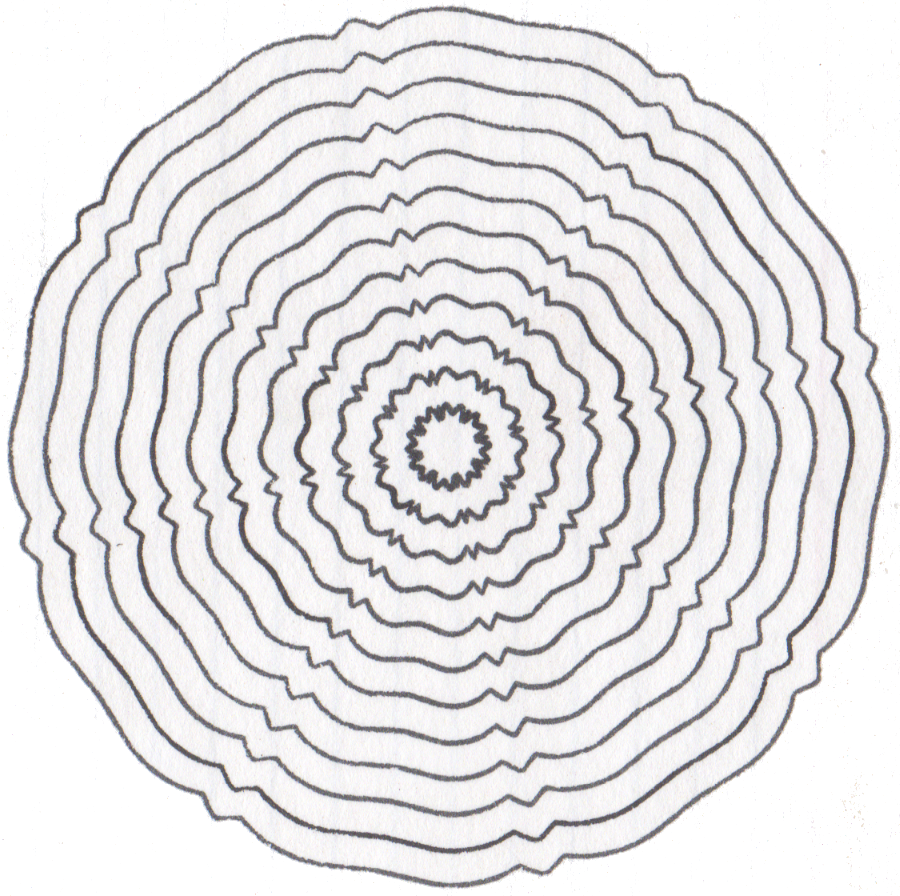

Paper Chuck Drawing

Drawn from the Near Side

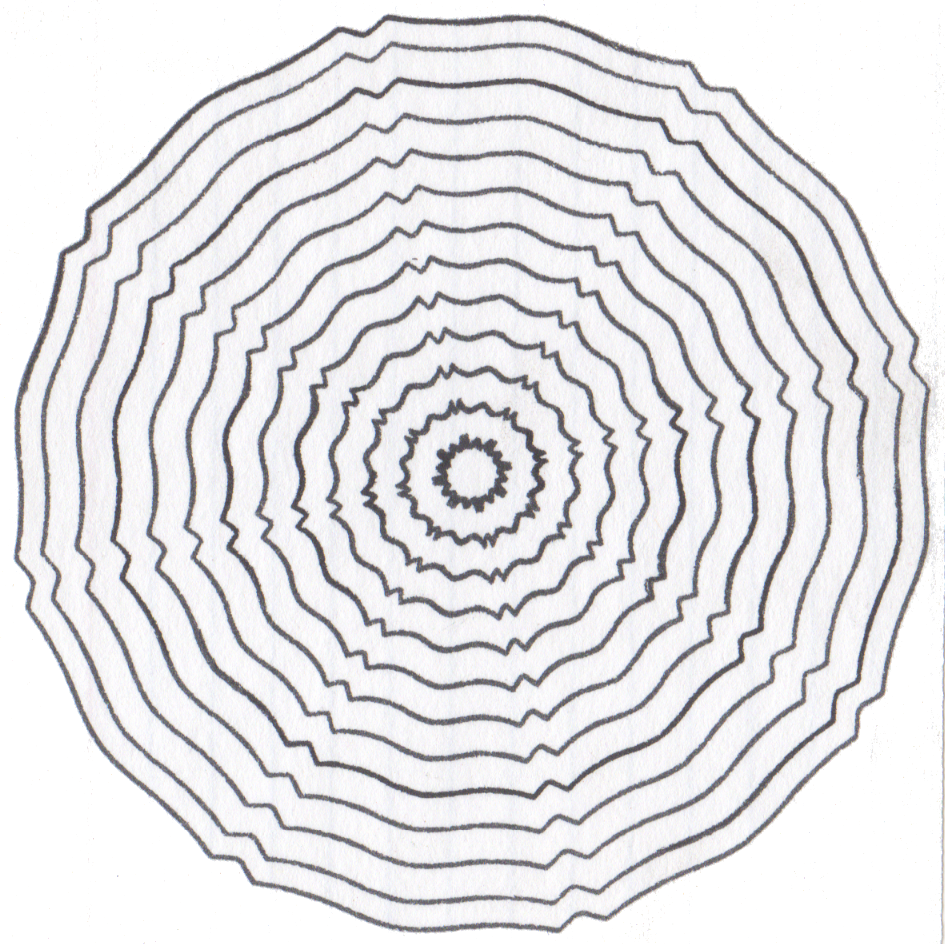

Paper Chuck Drawing

Drawn from the Far Side.
